Nguyên lý hoạt động của bơm chân không Sihi
Các loại máy nén của Sterling Sihi
SIHI LIQUID RING COMPRESSOR
0.2 – 1.5 Barg
Single Stage
LOH series
Single Stage
0.2 – 1barg
Up to 51m3/hr
Mech Seal
Grey Cast Iron, SS
LPH / LPHX series
Single Stage
0.2 – 1.5 barg
Up to 1850m3/hr
Gland Packing, Mech Seal
Grey Cast Iron, SS
KPH series
Single Stage
0.2 – 1.5 barg
Up to 3080m3/hr
Gland Packing, Mech seal
Grey Cast Iron, SS
Các loại bơm chân không Sterling Sihi
SIHI LIQUID RING VACUUM PUMP
33-1013mbar
LOH series
2 Stage
33 – 1013mbar
Up to 60m3/hr
Gland Packing, Mech Seal
Grey Cast Iron, Bronze, SS
LEM / LEL series
Single Stage
33-1013mbar
Up to 470m3/hr
Mech Seal, Magdrive
Grey Cast Iron, SS
LPH / LPHX series
2 Stage
33-1013mbar
Up to 10350m3/hr
Gland Packing, Mech Seal,
Magdrive
Grey Cast Iron, SS
SIHIextruvac LEME series
Single Stage
100-1013mbar
Up to 170m3/hr
Mech Seal
Grey Cast Iron
LEH series
Single Stage
33-1013mbar
Up to 5150m3/hr
Gland Packing, Mech Seal,
Magdrive
Grey Cast Iron, SS
SIHsterivac LEMS series
Single Stage
33-1013mbar
Up to 57m3/hr
Mech Seal
Grey Cast Iron
Bơm Flowserve Sihi áp lực cao MS Series
SIHImulti “MS” Series Design Features
Pump allowable pressure options
MSL 40 bar / 580 psig
MSM 63 bar / 913 psig
MSC 100 bar / 1,450 psig
MSH 160 bar / 2,220 psig

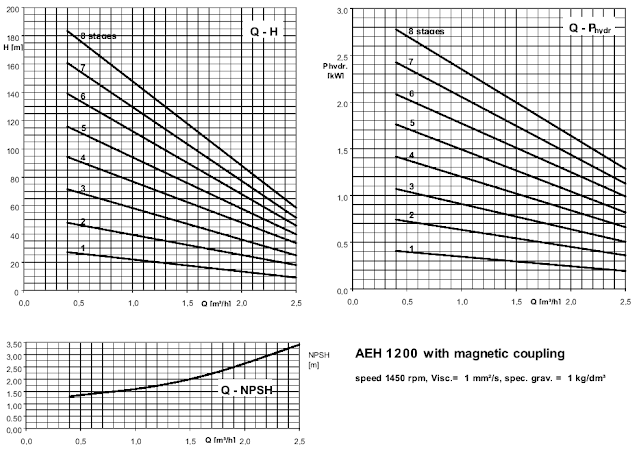

Sihi Side Channel Pumps Model CEH / AEH / AKH / AOH
Side channel pumps – Hydraulic Range
*CEH range
Nominal Pressure : 580 psig
Flow Rate : Up to 150 gpm
Delivery head : Up to 1160 ft
Material: Cast Iron, ductile iron, stainless steel
Shaft sealing: Gland packing, mechanical seal (single or double), magnetic coupling
Typical applications: Condensates, LPG, CO2
Các loại bơm Flowserve Sihi dùng trong Công Nghiệp ZLND, ZLKD và ZLIC
zlnd
